APPLICATION
- Nice appearance, tight configuration. Characteristic: quick action and high sensitivity.
- Variety of temperature degrees.
- Widely used in appliance, electronic equipment, automatic machine, communication equipment, automative electronics, apparatus and instrument, electron motion tool etc.

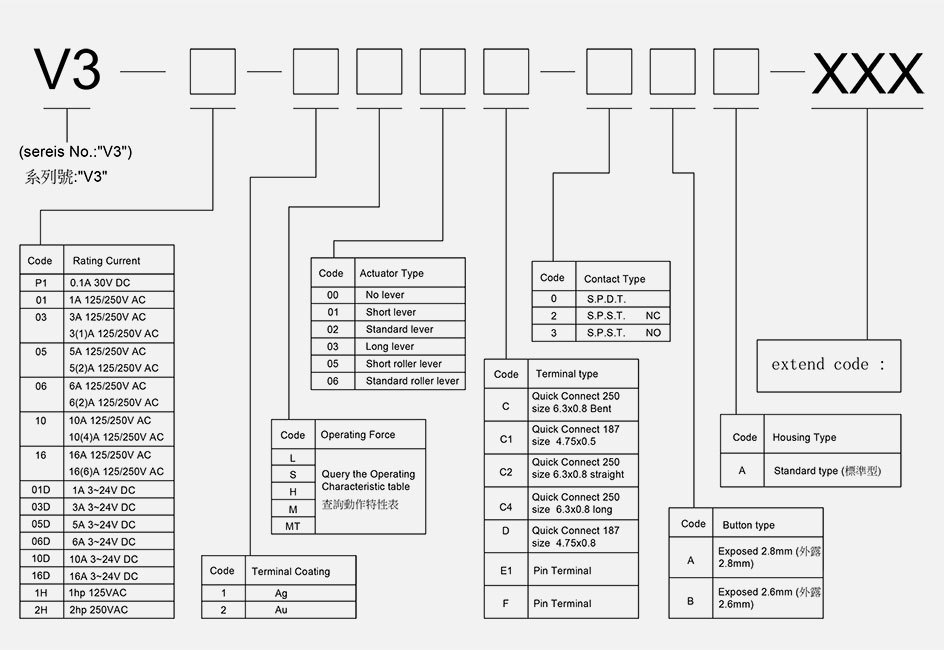

HOW TO ORDER
SPECIFICATION
| Items | Value | |
|---|---|---|
| Operating Speed | 0.1mm~1m/s (Related with actuator forms) | |
| Operating Frequency | Mechanical 120 cycles/min ; Electrical 10 cycles/min | |
| Insulation Resistance | ≥100MΩ (500VDC) | |
| Contact Resistance | ≤30mΩ (Intial value) | |
| Test voltage | Between terminals of the same polarity | AC1500V , 50/60Hz , 1min |
| Between current-carrying metal parts and ground(case),nd between each terminal and non-current-carrying metal parts. |
AC2500V , 50/60Hz , 1min | |
| Vibration Resistance | 10~55Hz , 1.5mm Double amplitude | |
| Shock Resistance | Destruction： OF>0.5N : 1000m/s2 (approx.100G) max OF≤0.5N : 400m/s2 (approx.40G) max Malfunction： OF>0.5N : 200m/s2 (approx.20G) max OF≤0.5N : 100m/s2 (approx.10G) max |
|
| Life Expectancy | Mechanical≥300,00 cycles Electrical≥6,000 / 10,000 cycles |
|
DIAGRAM
| Outline Drawing | Mounting Hole Dimension |
|---|---|
 |
 |
