Type C USB-A1B69C

Type C USB-A1B69C Connector

  • Automated Professional Production
  • Fast Delivery and Stable Quality
  • High Cost-Effective
CATALOG

APPLICATION

  • Suitable for all kinds of consumer electronics, medical equipment, home appliances,wearable device ...etc.

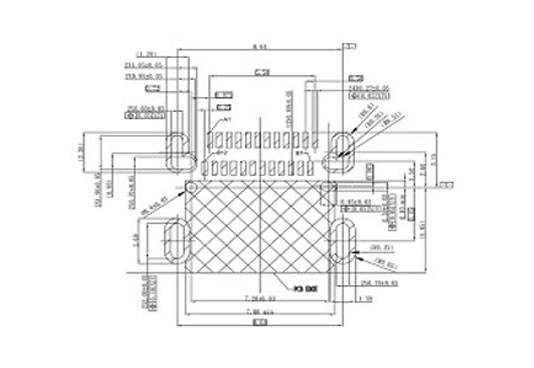

DIAGRAM

SPECIFICATION

Items Standard
Operating Temperature Range -40 to +85°C
Electrical Performance Rating 5.0A 5V AC
Insulation Resistance 100MΩ Min.
Dielectric Strength 100V AC for 1 min
Contact Resistance 40 mΩ Max.
Durability Operating Life 10,000 Cycles
Mechanical Performance Insertion Force 5~20N.
Extraction Force 8~20N.
